Custom Capacitive Touch Film Switch

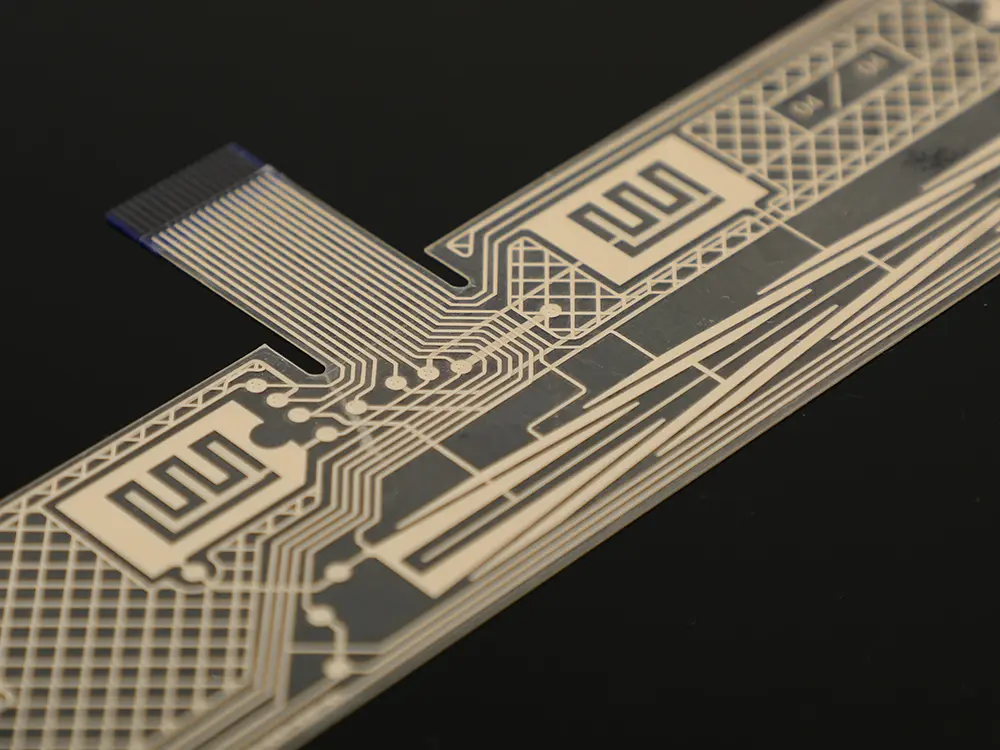

Capacitive Touch Interface Layers Overview
FSR force sensors are versatile components used across a wide range of applications due to their ability to accurately detect pressure and touch.
Longer Product Life
Operates without physical contact, which enhances durability and extends product life.
Easy to Clean
The flat surface design eliminates hygiene dead corners, ensuring safety and cleanliness while reducing the risk of cross-contamination.
Transparent Design
Light transmittance exceeds 80%, maintaining visual clarity for backlit or display-integrated applications.
Waterproof and Dustproof
The seamless integration of circuit and panel prevents ingress. Waterproofing can reach IPX7 level, offering strong protection against environmental factors.
Easy to Install
The functional material layer is less than 0.3 mm thick. It can be bonded to panels using double-sided adhesive, allowing it to conform to curved or irregular surfaces. Lightweight and easy to install.
Multi-Touch Capability
Supports single-point touch via self-capacitance or multi-point matrix touch via mutual capacitance. Can also be configured for slider-type multi-touch input.
ESD Protection
Electrostatic discharge is mitigated through the design of conductive grid circuits around the circuit layer, grounded for effective ESD shielding.
Product Specification
Item |
Unit |
Specifications |
Printing Accuracy (Line Width/Spacing) |
mm |
Minimum silver paste line width ≥ 0.3 mm, minimum spacing 0.3 mm, with circuit traces at least 2 mm from the outer edge. |
Standard Pin Pitch |
mm |
2.54 / 1.27 / 1.0 / 0.5 mm (various specifications) |
Key Lifespan |
times |
1 million actuations |
Insulation Resistance |
MΩ |
≥100 MΩ (at 100V DC) |
Operating Voltage |
V |
≤35V DC |
Operating Current |
mA |
≤100 mA |
Dielectric Strength (Base Material) |
V |
1500V DC |
UL Rating |
— |
UL94 V-2 / VTM-2 |
Waterproof Rating |
— |
IPX7 |
ESD Resistance |
KV |
±4000KV |
Operating Temperature |
℃ |
-20℃ to +70℃ |
Storage Temperature / Humidity |
℃ |
Temperature: 23℃ ±2℃ / Humidity: 55% ±5% RH |
Flex Durability |
cycles |
>50 cycles (wrapped around a 2mm diameter rod, 2kg force, bent 180° back and forth 50 times, resistance change <300%) |

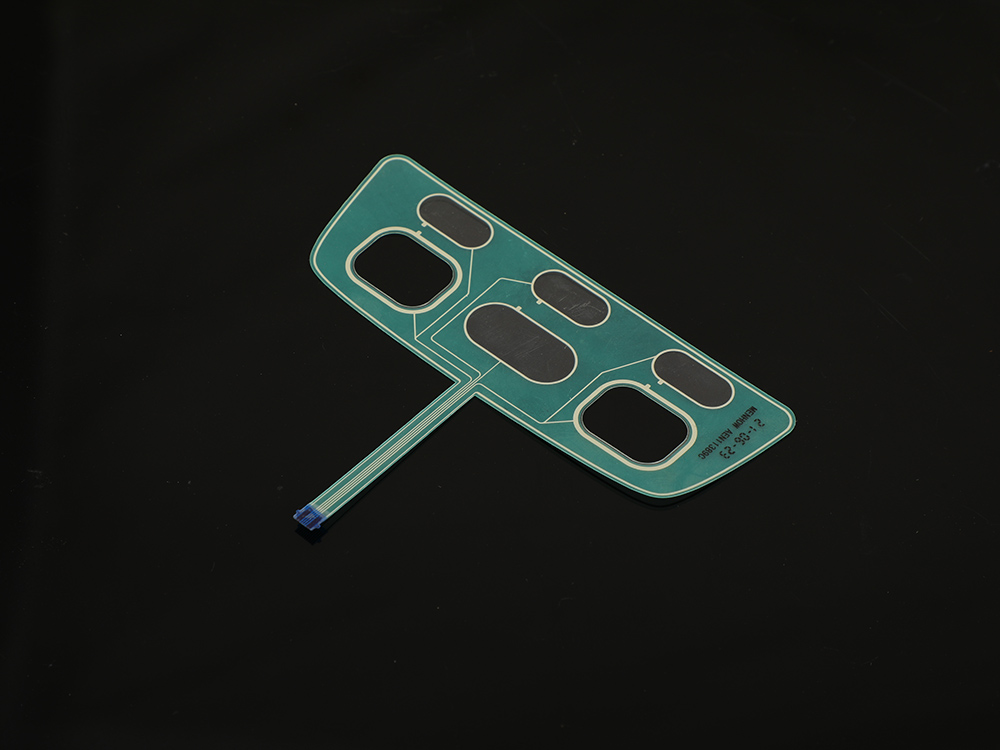

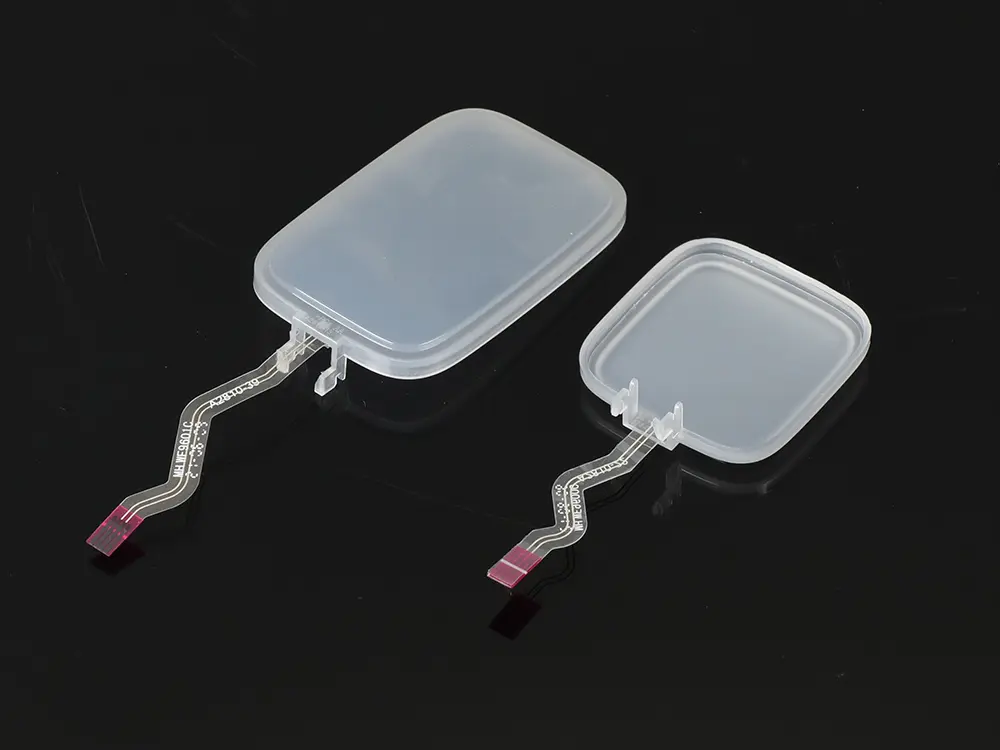

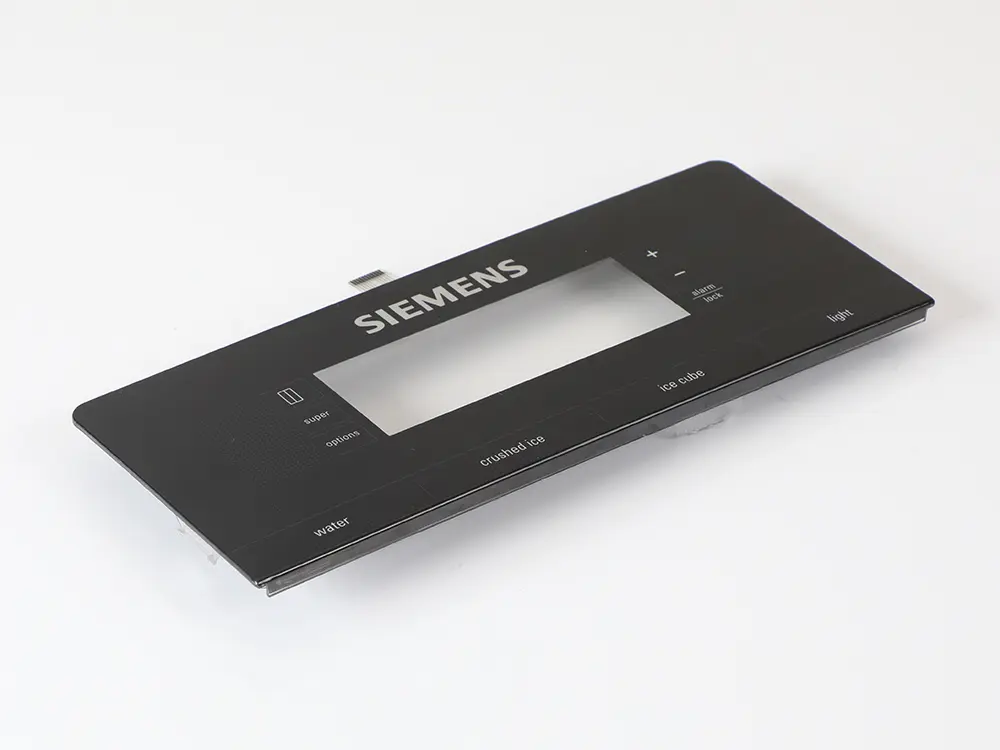

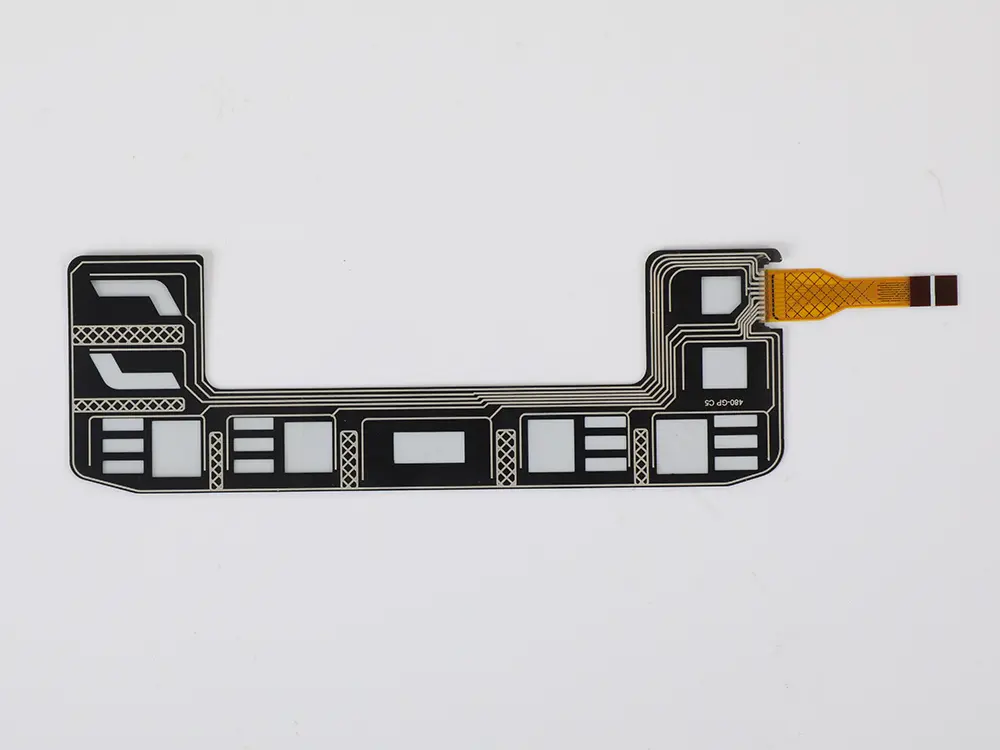

Product Applications

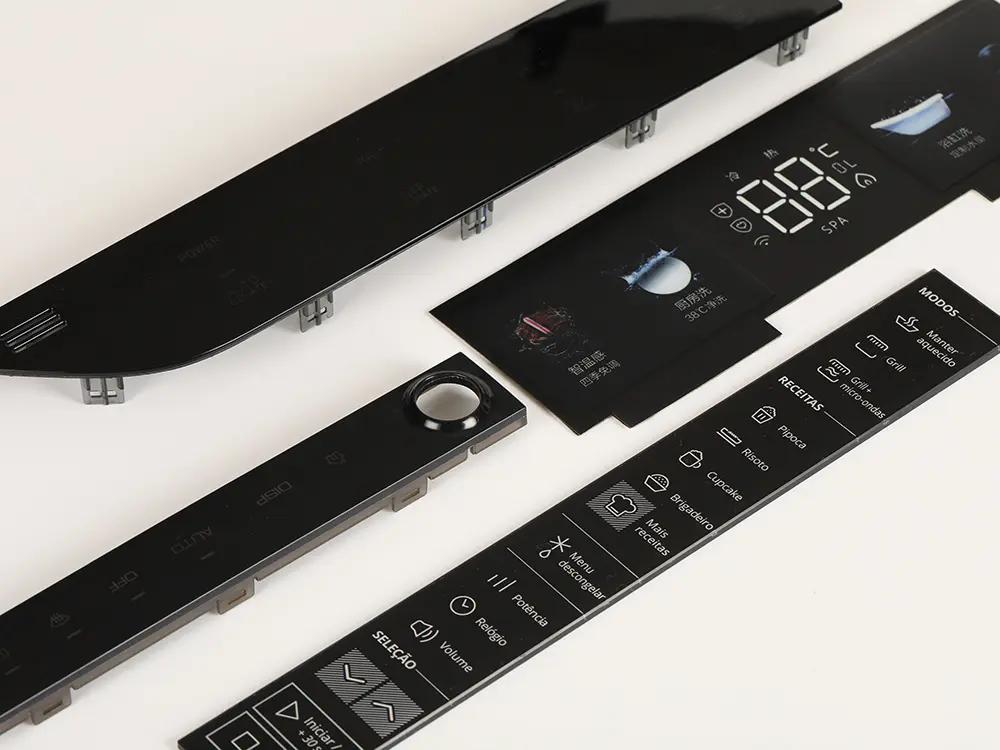

Capacitive touch film is widely applied across consumer electronics, home appliances, medical devices, automotive interiors, and industrial equipment, where intuitive operation, sleek design, and reliability are essential. It is generally preferred for applications demanding modern aesthetics, faster response, and multi-touch functionality, while resistive switches remain viable for cost-sensitive or rugged environments.
