Custom printed force sensing resistor

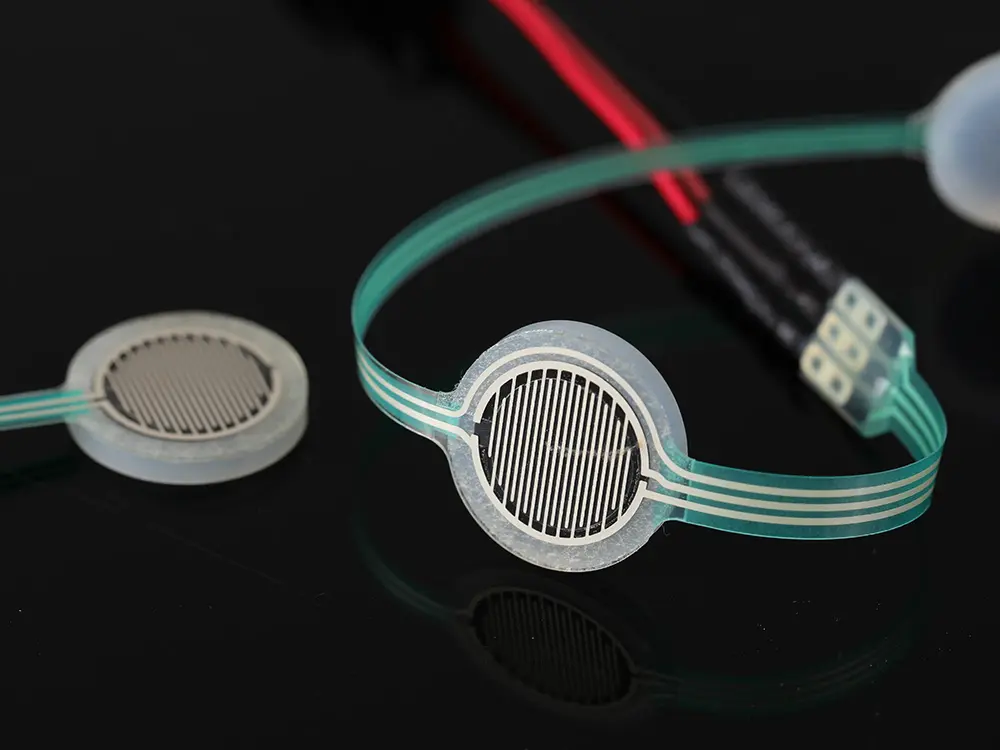

A Force Sensing Resistor (FSR) is a thin, flexible sensor that changes resistance when pressure is applied. It uses a piezoresistive layer to detect force levels.

FSR force sensors are widely used across multiple industries. In healthcare, they monitor patient movement in hospital beds; in robotics, they enable tactile feedback in grippers; in wearable tech, they power smart insoles for gait analysis; and in automotive systems, they detect passenger presence in seats. Their low power use, cost-effectiveness, and easy integration make them ideal for pressure-sensitive applications.

FSR Sensor Layers Overview

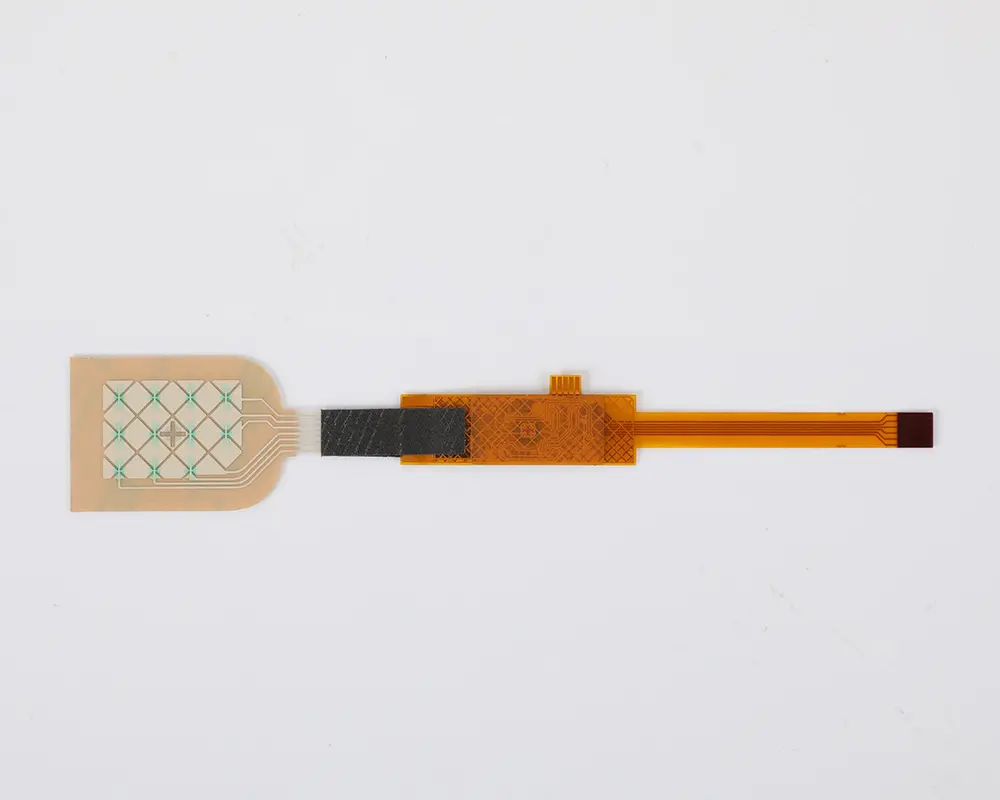

Custom printed force sensing resistor (1)

Custom printed force sensing resistor (2)

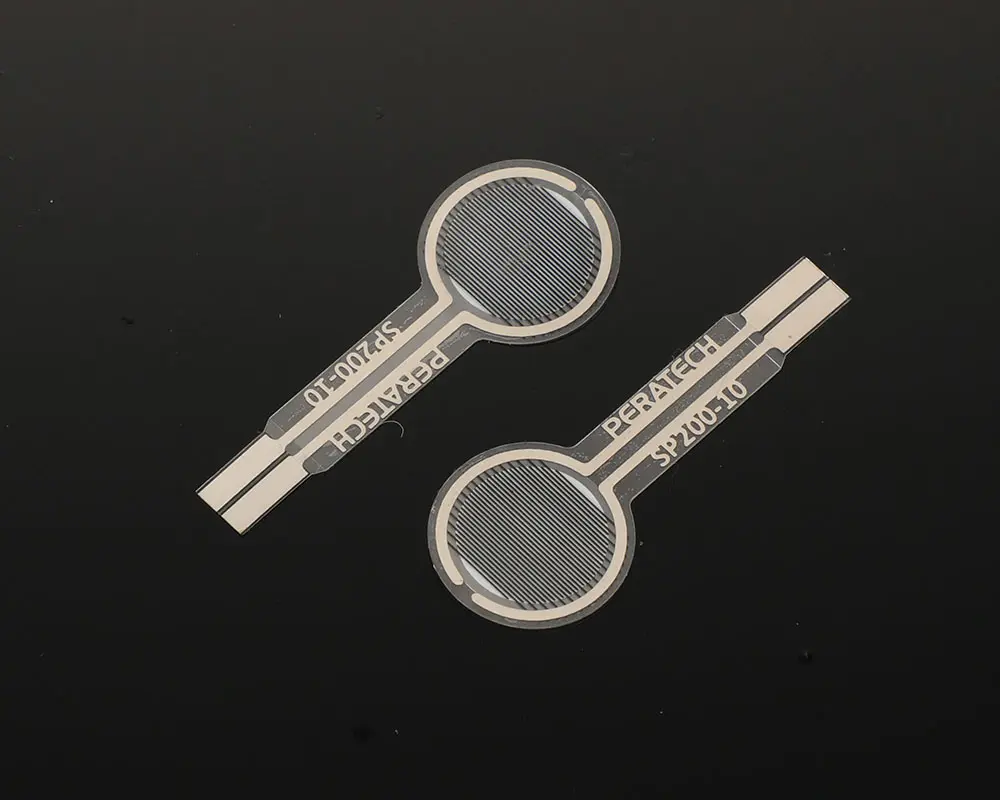

Custom printed force sensing resistor (3)

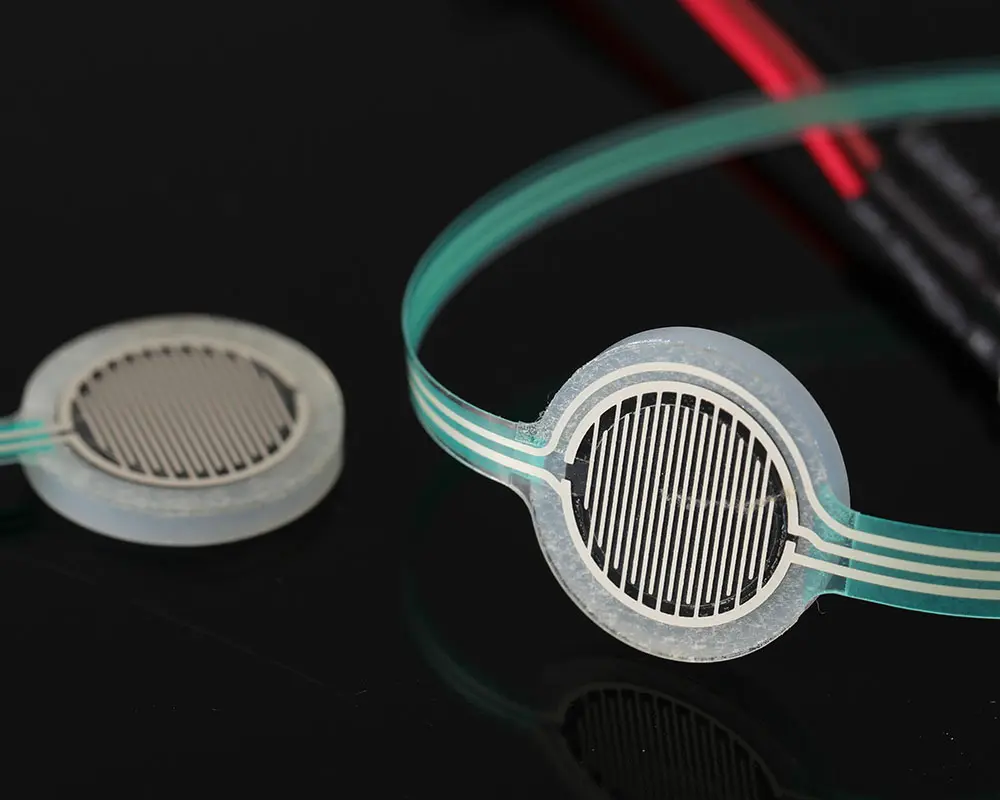

Custom printed force sensing resistor (4)

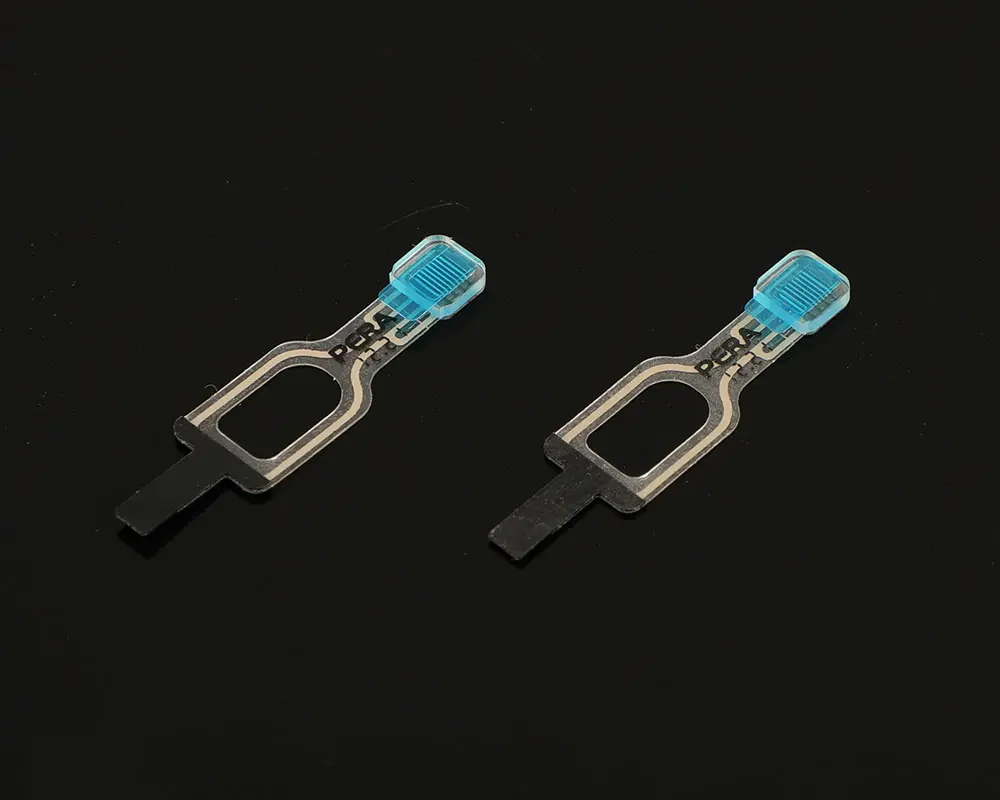

Custom printed force sensing resistor (5)

Custom printed force sensing resistor (6)

Custom printed force sensing resistor (7)

Custom printed force sensing resistor (8)

Common Material

PET

FSR Specification

Item	Unit	Specifications
Printing Accuracy (Line Width/Spacing)	mm	Silver ink line width ≥ 0.15 mm, minimum spacing 0.15 mm
Standard Pin Pitch	mm	2.54 / 1.27 / 1.0 / 0.5 mm (various options)
Force Range	g, Kg	10g to 500kg (various force values)
Key Lifespan	times	>1,000,000 presses
Insulation Resistance	MΩ	≥100 MΩ (at 100V DC)
Operating Voltage	V	≤35V DC
Operating Current	mA	≤100 mA
Substrate Dielectric Strength	V	1500V DC
UL Rating	—	UL94 V-2 / VTM-2
Waterproof Rating	—	IPX7
Operating Temperature	℃	-20℃ to +70℃
Storage Temperature / Humidity	℃	Temperature: 23℃ ±2℃ / Humidity: 55% ±5% RH
Flex Durability	cycles	>50 times (wrapped around a 2mm diameter rod, 2kg force, bent 180° back and forth 50 times, resistance change <300%)

Application Area

FSR force sensors are versatile components used across a wide range of applications due to their ability to accurately detect pressure and touch.

Consumer Electronics

Home Appliances

Medical Devices

Automotive Systems

Industrial Equipment

● Used in gaming controllers, remote controls, styluses, and touch-sensitive keypads

● Enhances user interaction through precise, pressure-based input

● Integrated into microwaves, washing machines, smart kitchen devices, and vacuum cleaners

● Enables responsive control panels and touch-sensitive features for improved user experience

● Applied in patient monitoring systems and prosthetics

● Tracks pressure and movement for rehabilitation and diagnostic tools

● Detects seat occupancy and steering wheel grip

● Supports touch-sensitive controls for dashboards and infotainment systems

● Utilized in robotics and automated machinery

● Powers pressure-sensitive safety systems and process controls
