Custom Resistive Membrane Switch

A membrane switch is an electronic input device manufactured by laminating flexible film materials, integrating key graphics, circuitry, and switching functions into one unit. Characterized by its thinness, sealing property, aesthetic design, customizability, and cost-effectiveness, it is widely applied in electronic products and equipment requiring user input interfaces with high demands for sealing, space efficiency, and appearance. It serves as an important form of modern human-machine interaction interfaces.

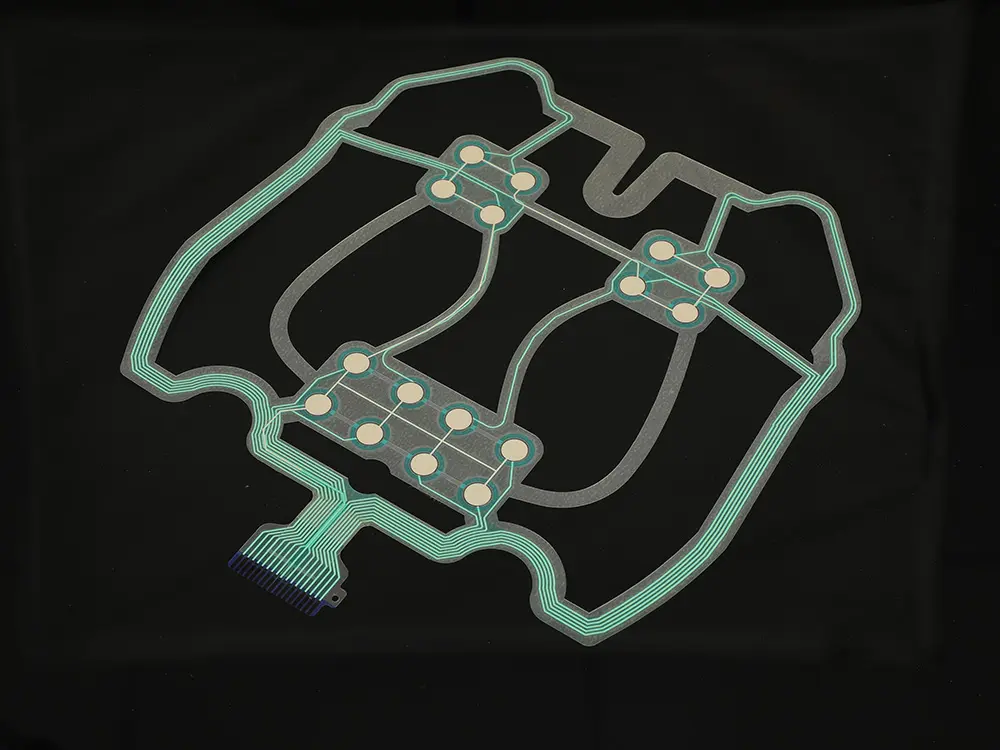

Membrane Switch Layers Overview

Common Material

PET, PC

Key Features

Tactile Feedback Options

We offer multiple tactile feedback configurations to suit different user experiences including metal dome, material embossed and flay type. Learn more about our tactile membrane switch.

Backlighting Solutions

We provide flexible backlighting options for visibility and aesthetic enhancement including LED, Light Guide Film (LGF) and Phosphorescent Ink. Learn more about our backlighting membrane switch.

Sealing & Waterproofing

Our membrane switches offer strong environmental sealing:
Standard Waterproof Rating: IPX4 to IPX6.
Enhanced Protection: Achieve up to IPX7 by using high-grade waterproof adhesives and added sealing layers.

UV Resistance & Antimicrobial Options

UV Resistance: Uses UV-resistant overlays and inks, ideal for outdoor applications.
Antimicrobial Coating: Optional top layer coating resists bacterial growth and supports UV sterilization, making it suitable for medical environments.

EMI Shielding

To prevent electromagnetic interference:
We apply conductive grid designs in the circuit layout.
Additional metal foil grounding on both front and back layers can be added for comprehensive EMI shielding.

ESD Protection

Our switches use anti-static materials with a surface resistance of 10⁸ ohms. Conductive grid patterns around the circuit perimeter are connected to ground, ensuring effective Electrostatic Discharge (ESD) protection.

Product Specification

Item	Unit	Specifications
Printing Accuracy (Line Width/Spacing)	mm	Silver paste line width ≥ 0.3 mm, minimum spacing 0.3 mm, trace edge ≥ 0.5 mm from outline
Standard Pin Pitch	mm	2.54 / 1.27 / 1.0 / 0.5 mm (various specifications)
Key Lifespan	times	>500,000 presses
Actuation Force	g	100g – 500g
Key Travel	mm	0.1–0.4 mm (non-tactile), 0.2–1.0 mm (tactile)
Insulation Resistance	MΩ	≥100 MΩ (at 100V DC)
Operating Voltage	V	≤35V DC
Operating Current	mA	≤100 mA
Contact Resistance	Ω	0.5 – 10 Ω
Substrate Dielectric Strength	V	1500V DC
UL Rating	—	UL94 V-2 / VTM-2
Waterproof Rating	—	IPX7
ESD Resistance	KV	±4000KV
Operating Temperature	℃	-20℃ to +70℃
Storage Temperature / Humidity	℃	Temperature: 23℃ ±2℃ / Humidity: 55% ±5% RH
Flex Durability	cycles	>50 cycles (wrapped around a 2mm diameter rod, 2kg force, bent 180° back and forth 50 times, resistance change <300%)

Product Applications

Consumer Electronics

Home Appliances

Medical Devices

Automotive Systems

Industrial Equipment

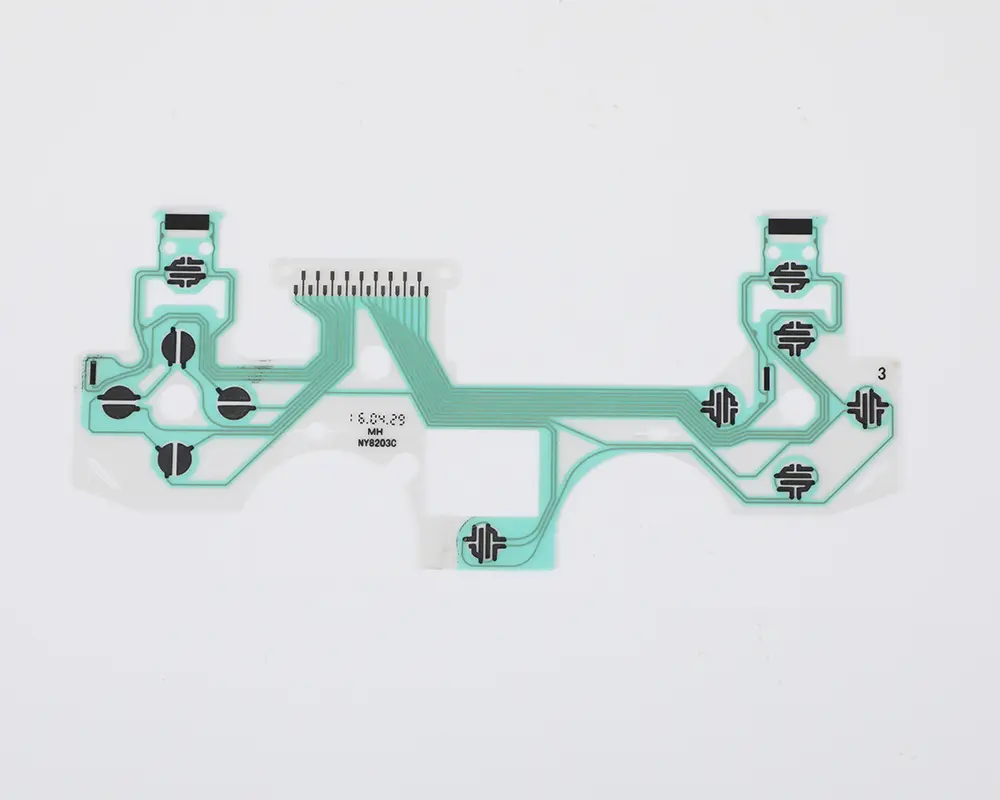

Used in remote controls, handheld devices, and styluses

Offers reliable and responsive user input

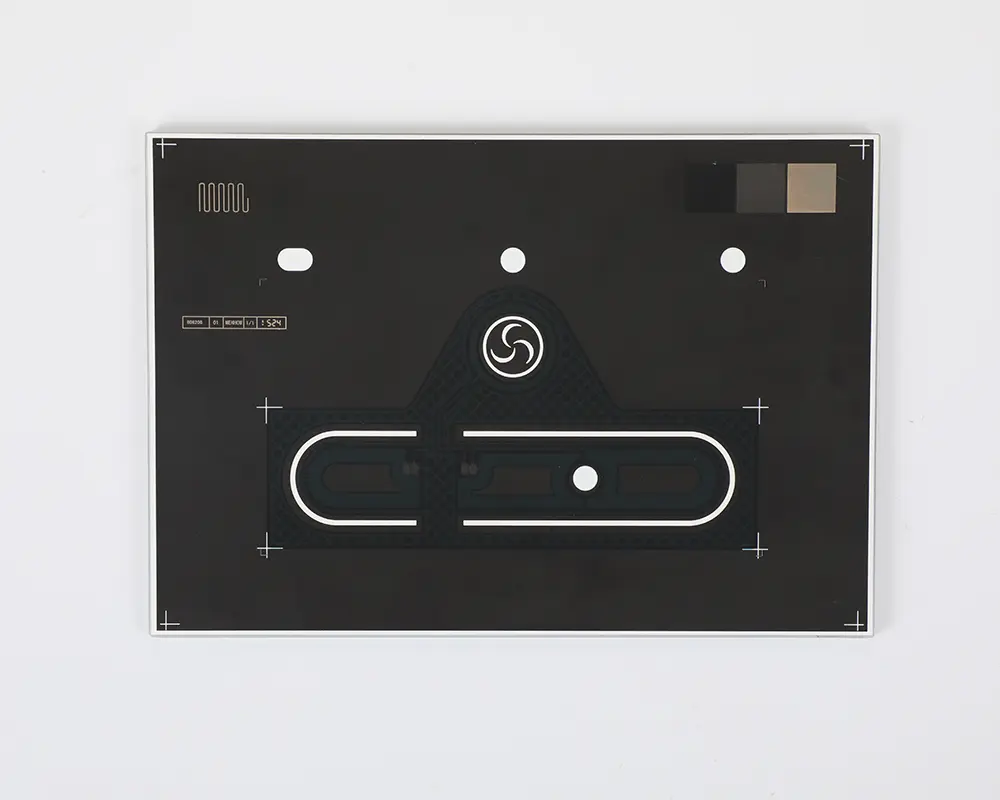

Integrated into microwaves, washing machines, air purifiers, and vacuum cleaners

Provides sealed, easy-to-clean, and modern interface designs

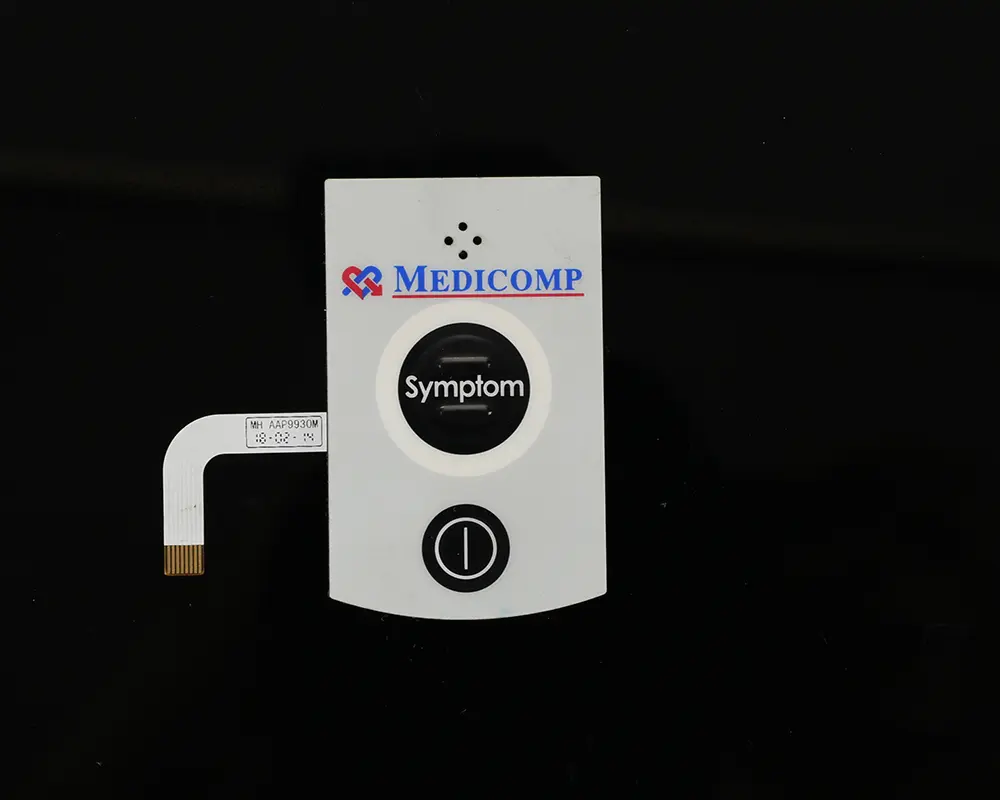

Found in diagnostic tools, patient monitors, and infusion pumps

Hygienic, moisture-resistant, and easy to disinfect

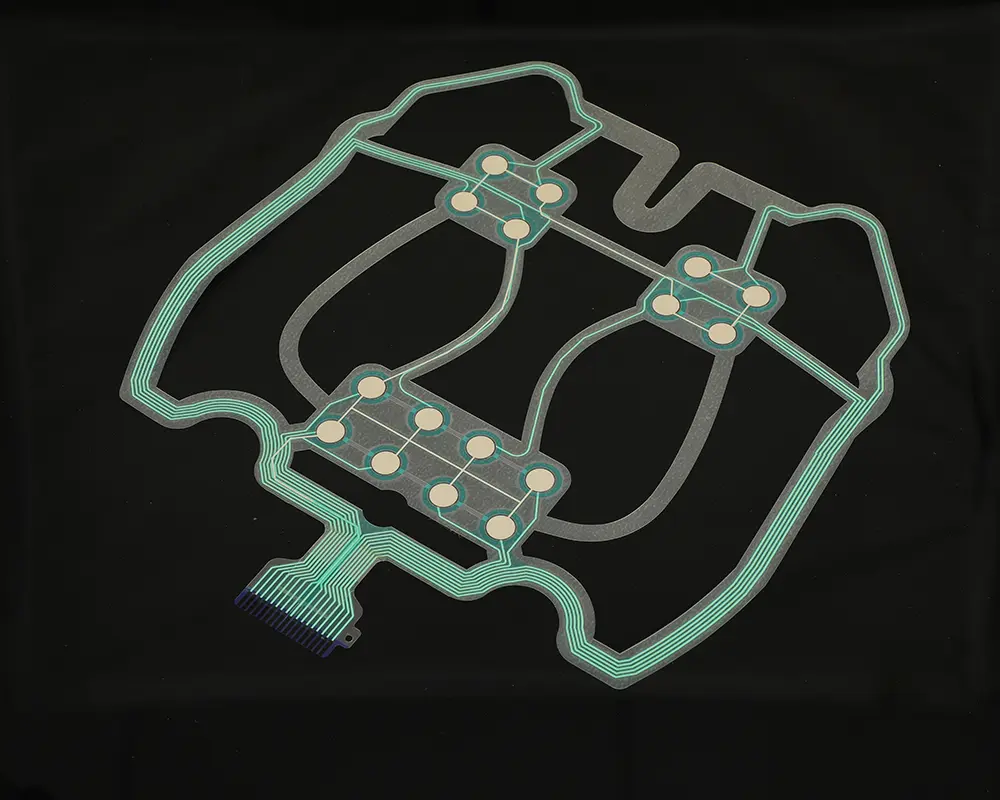

Applied in dashboards, climate controls, and infotainment systems

Slim profile and tactile reliability for user interfaces

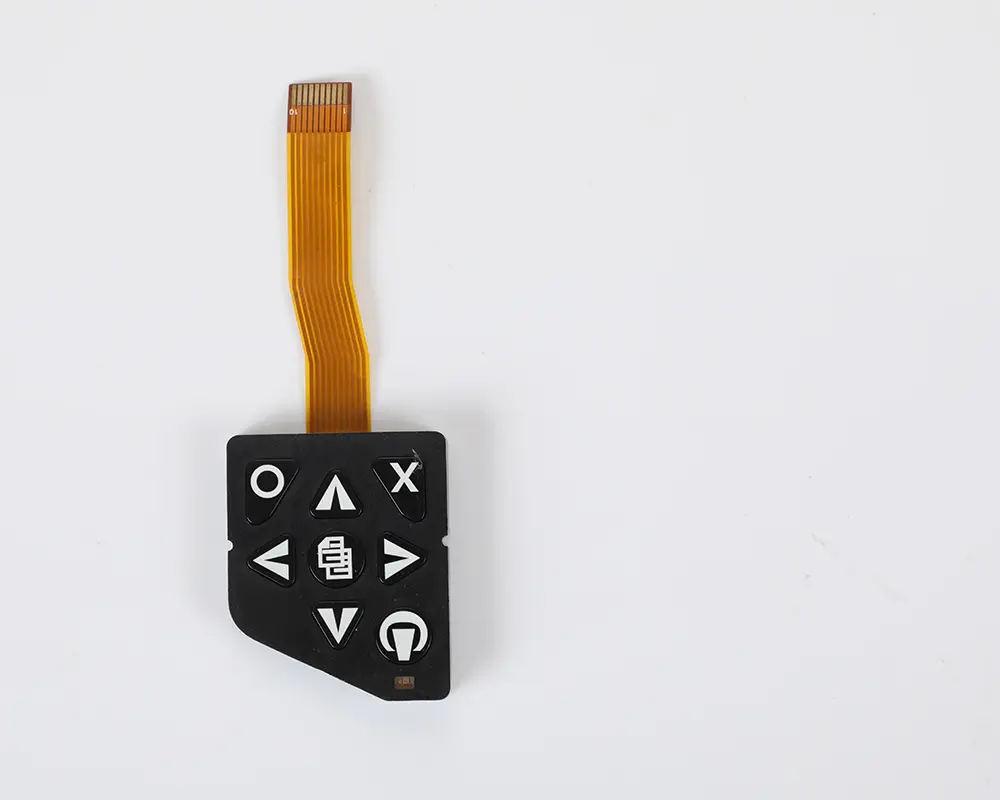

Used in machinery controls, safety systems, and instrumentation panels

Durable and dependable under harsh operating conditions
